Canada
500W/900W
High-Power Motor
52V 15Ah
Battery
55 Miles
Range Per Charge (estimate)
TEKTRO M300
Mechanical Disc Brakes
Class 2
Max 25 MPH with Pedal Assist
5-level Pedal Assist
12-Magnet Cadence Sensor

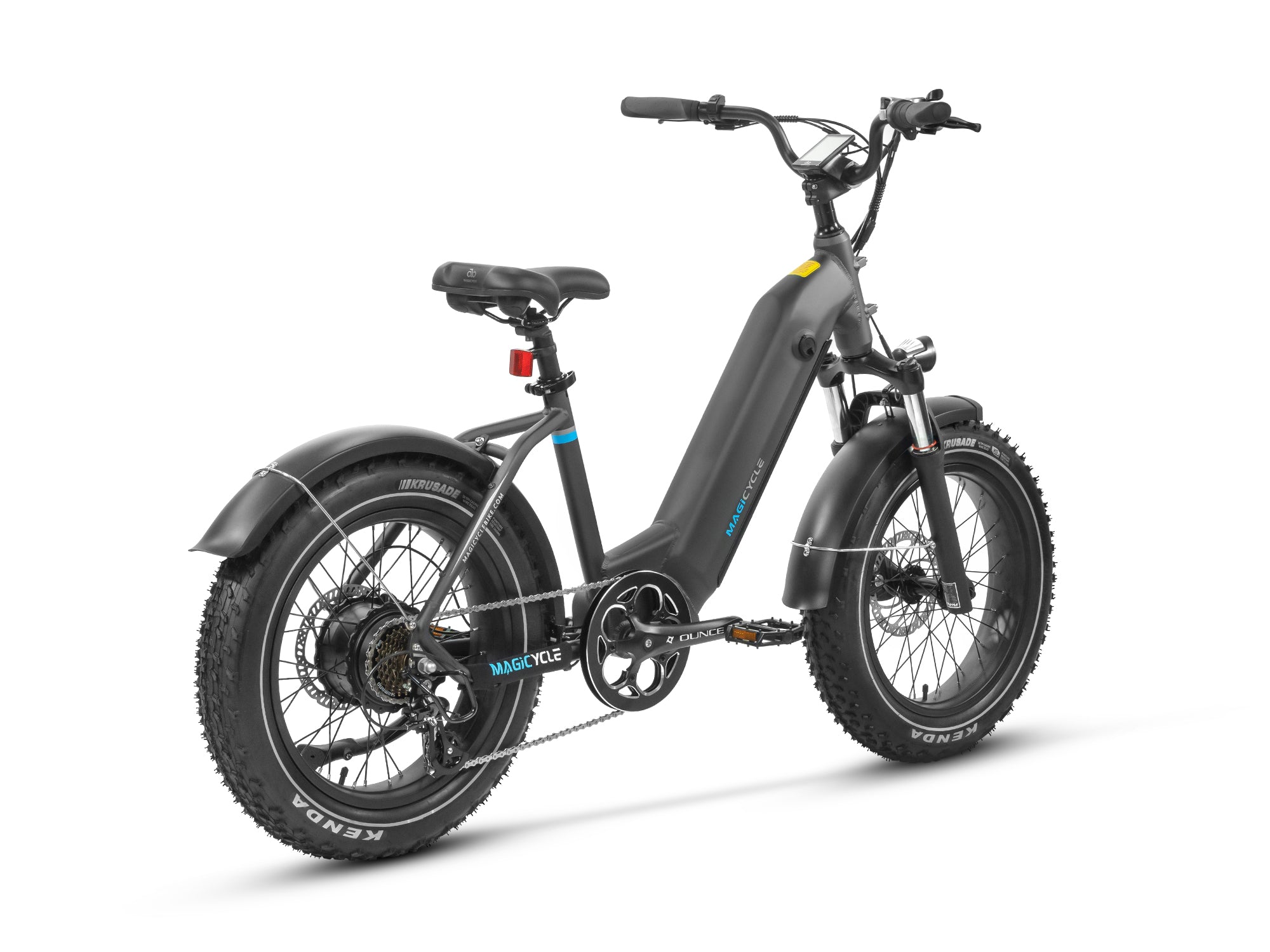

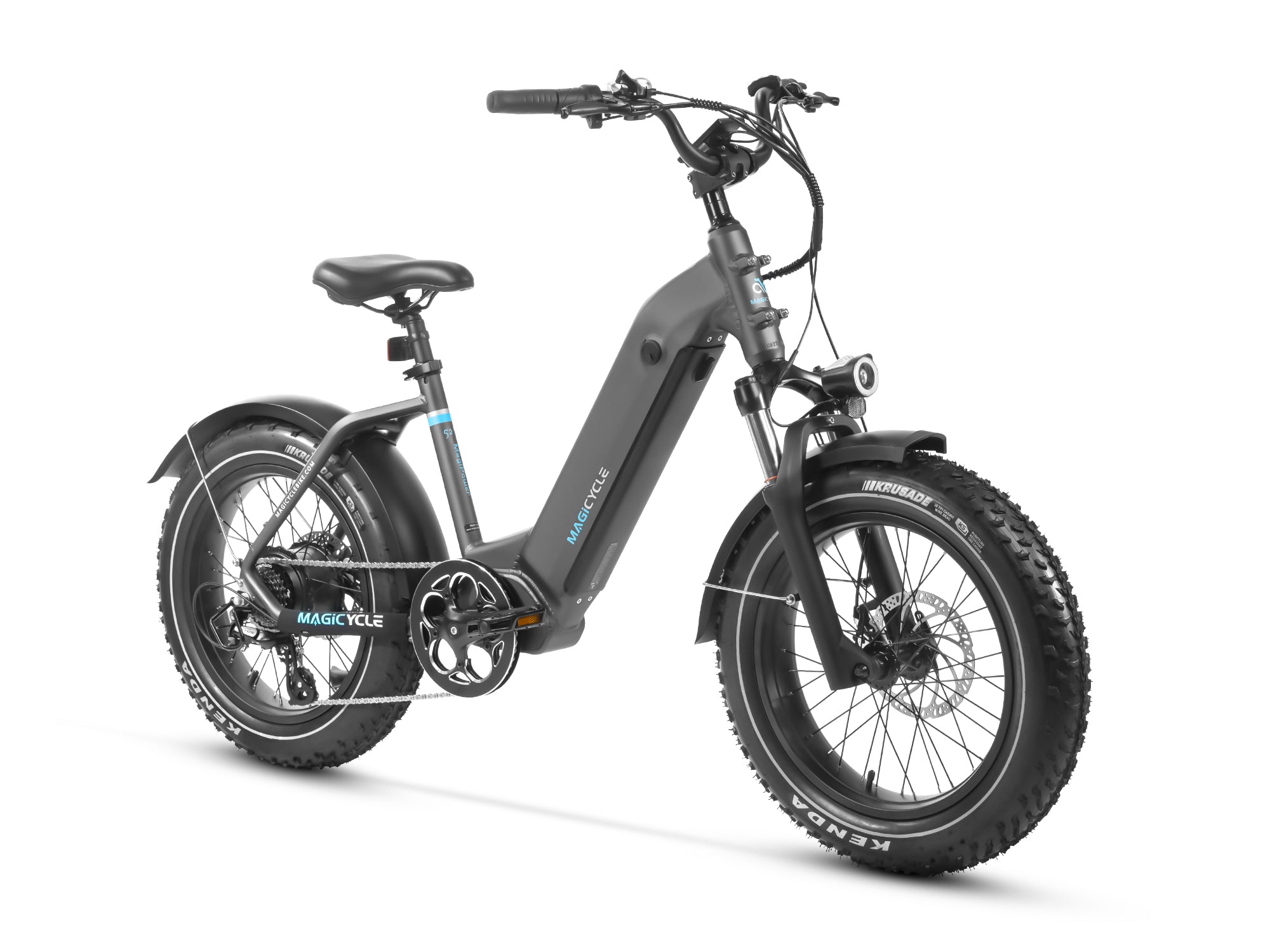

Feel in Control on Magicycle Ocelot

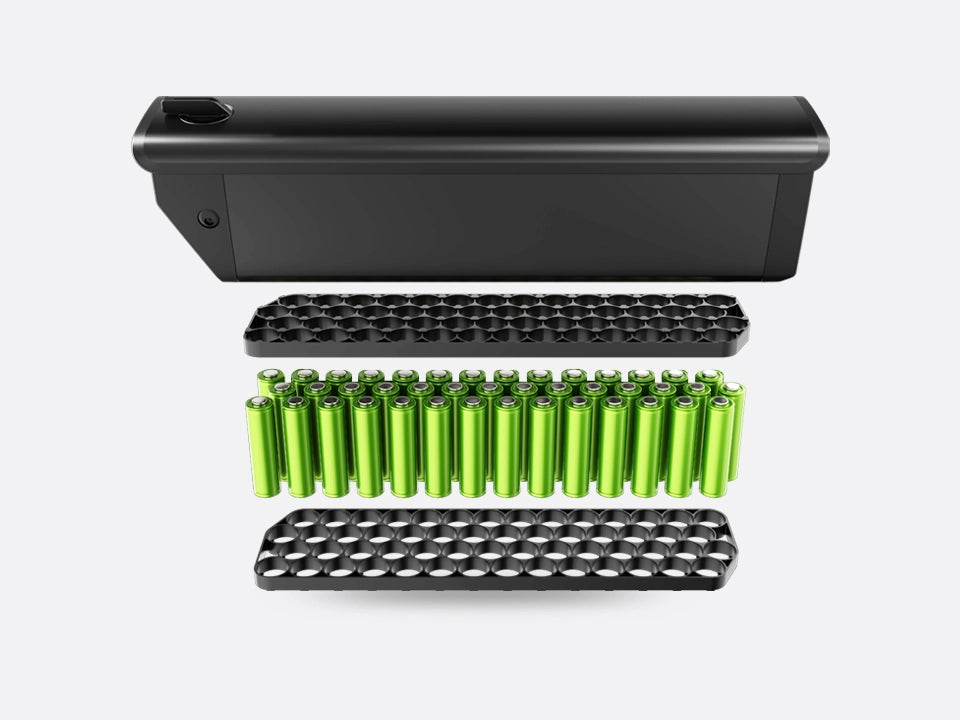

52V 15Ah Lithium Battery
Have a Fun Time with Your Pets
Easy Shopping Easy Life

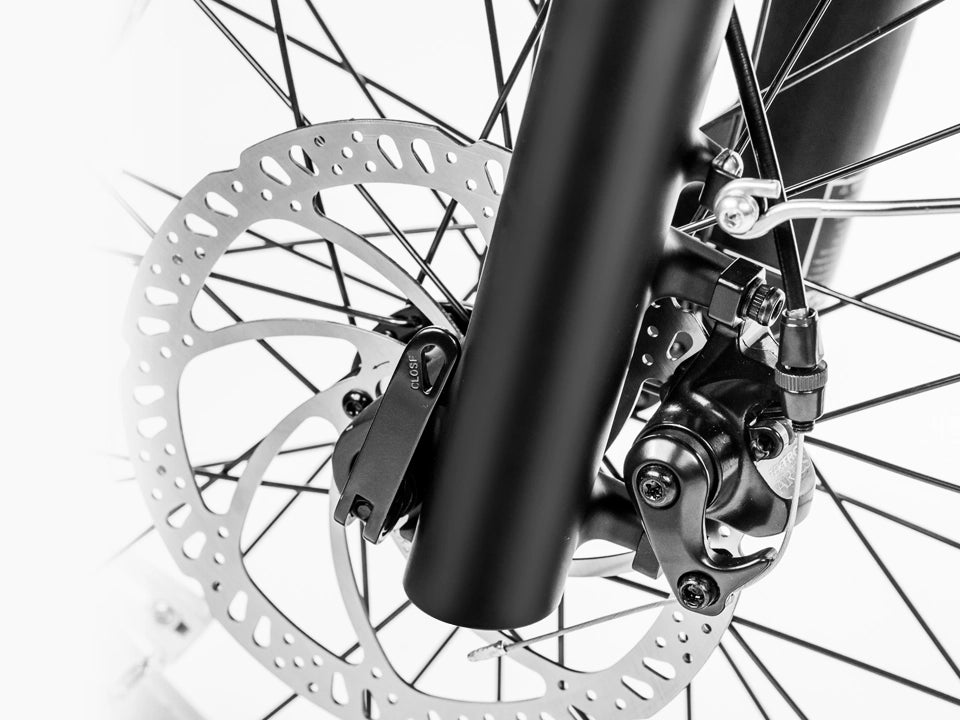

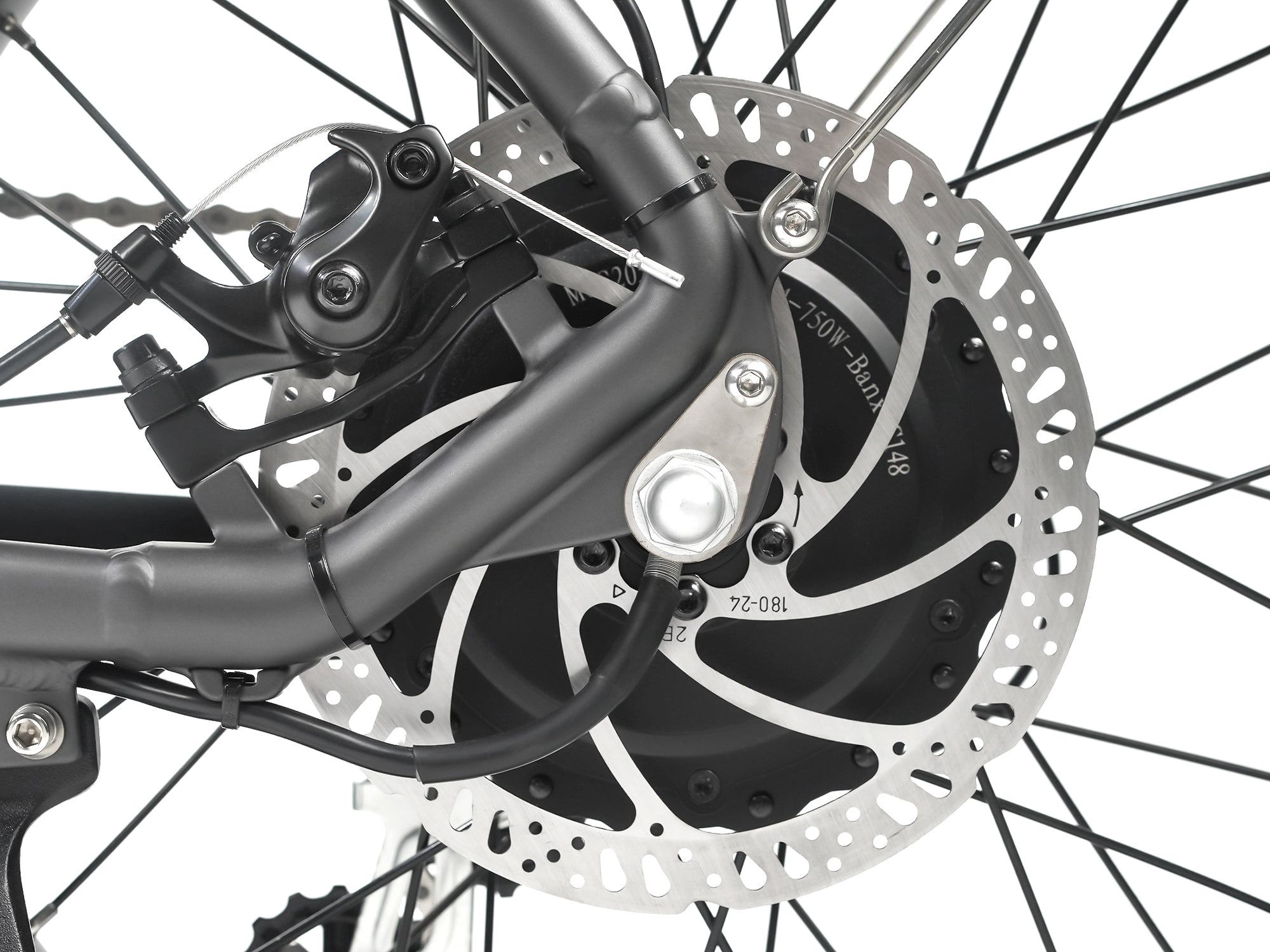

Tektro M300 Mechanical Disc Brakes
Frame Components
Magicycle VS Other Brands
Basket Mounting Bracket
Unibody design
Others
Welding brackets, lack aesthetics
What are the Pros of the Ocelot's bracket?
More solid and aesthetic

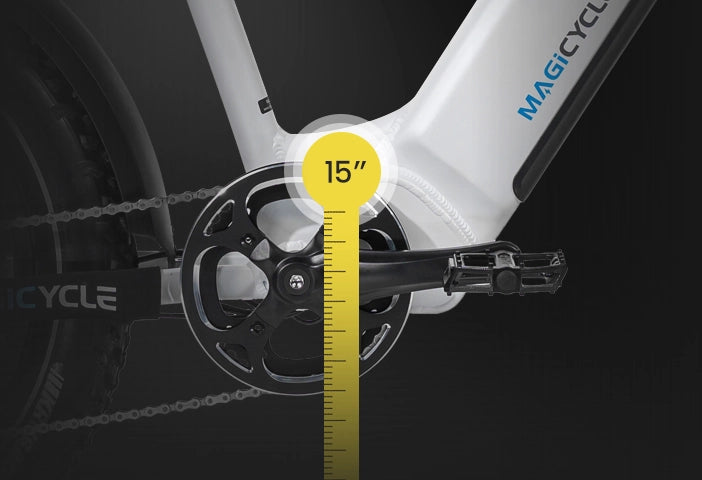

Standover Height
15.35" from the ground
Others
≥15.35"
What are the Pros?
Easier to get on and off

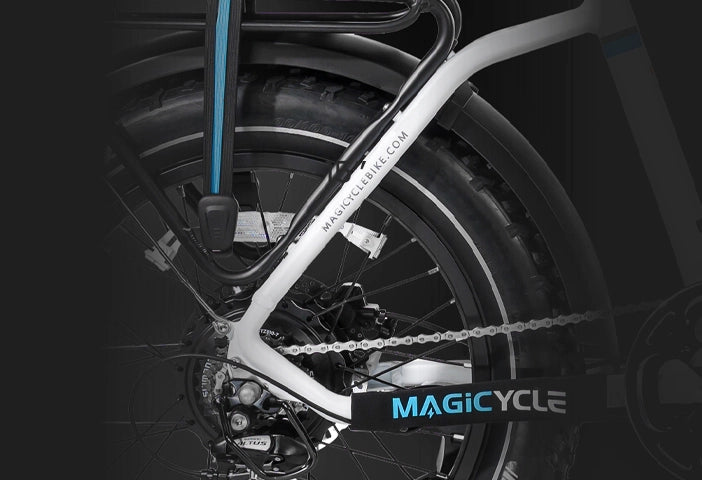

Seat Stay & Chain Stay
Pentagonal diamond section customized die opening better rigidity, and strength
Others
Common male mold square design Cheap pipe materials on the market
What are the Pros?
High torsional strength and good body rigidity Comfortable and stable riding, easy and sensitive control
The Position of Controller
The controller is installed in an aluminum alloy box, which is welded with the frame as a whole to provide double protection
Others
The box is exposed to the external environment and easily broken.
What are the Pros?
The Controller can be protected from external impacts like rock water, etc.

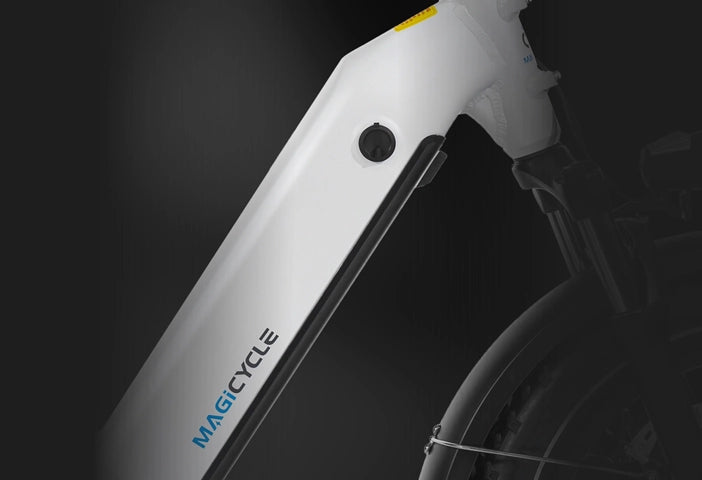

Down Tube
Multi-cavity variable diameter oil injection molding process, the wall thickness is designed to be 4.0mm-5.0mm process plan
Others
The industry usually has a thickness of only 3mm and is a single cavity
What are the Pros?
Solve the problems that the strength of the industry male model down tube is not enough, the riding frame is soft, and the handlebar shakes the rear wheel when going down hill
Specification
Battery52V 15Ah lithium battery
Range 30-55 miles
Hub Motor 500W/900W brushless gear motor

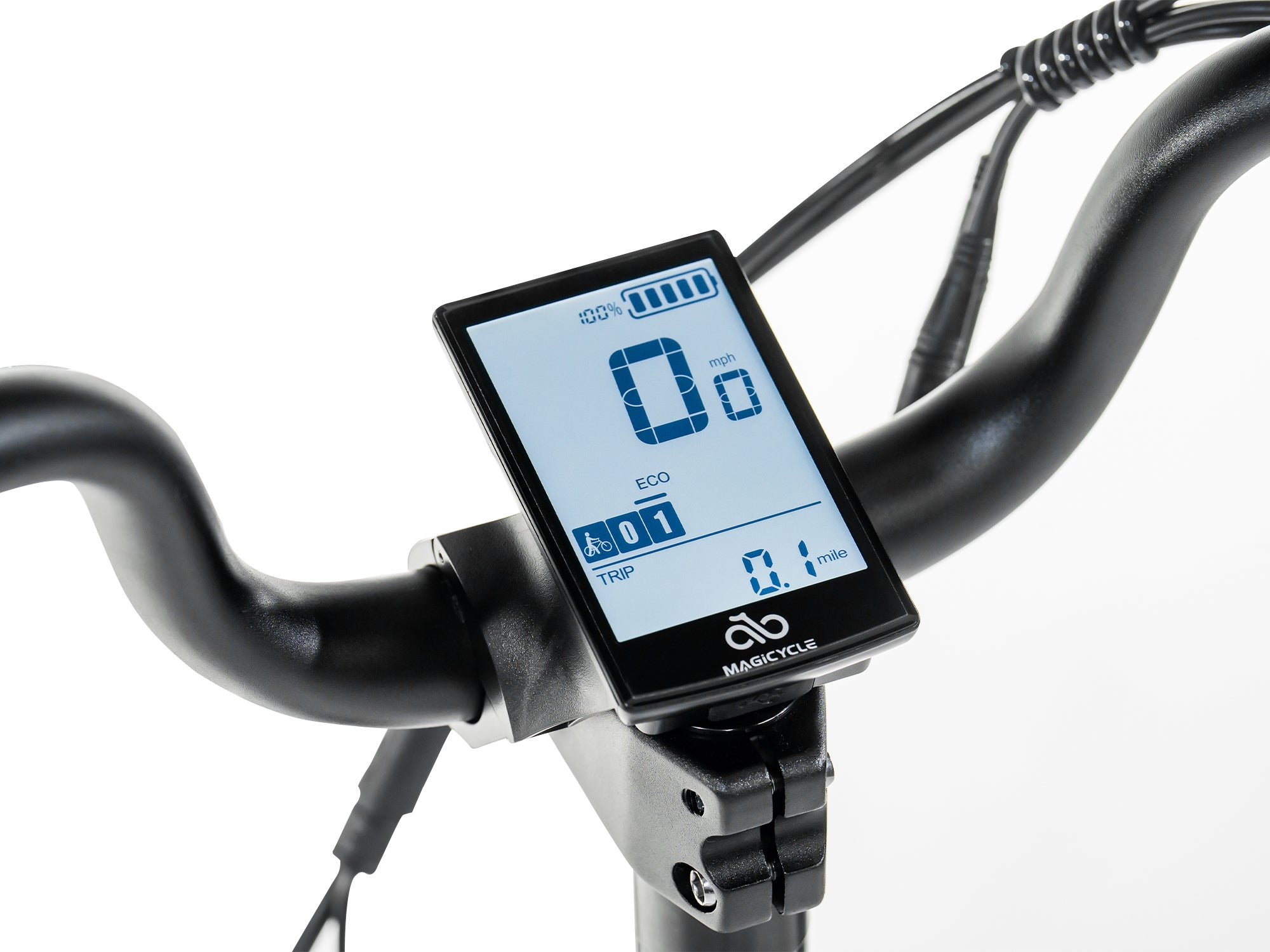

Display Backlight Display with USB Charging
Total Payload Capacity 350lbs
Frame size 20"
Charger Short-circuit proof 3.0A fast smart charger
Controller 500W/900W FOC smart controller, Current Range 7-22Ah (IPX8)

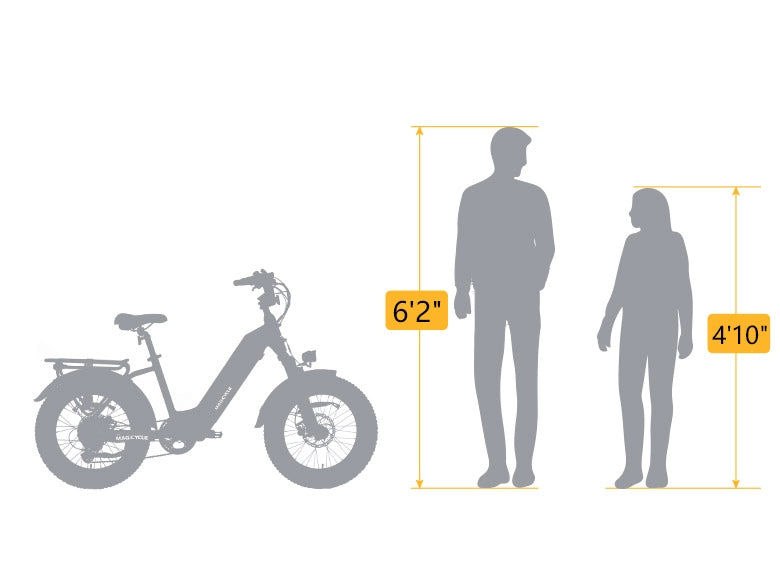

Recommended Rider Heights 4'10" - 6'2"
Charging Time 3 - 5 Hours
Weight 73lbs/33kg
Pedal Assist Intelligent 5 levels pedal assist with 12 magnet cadence sensor
Components
Tires Kenda 20"x4.0"
Brake Lever Aluminum alloy comfort grip levers with motor cutoff switch
Lights Integrated front light

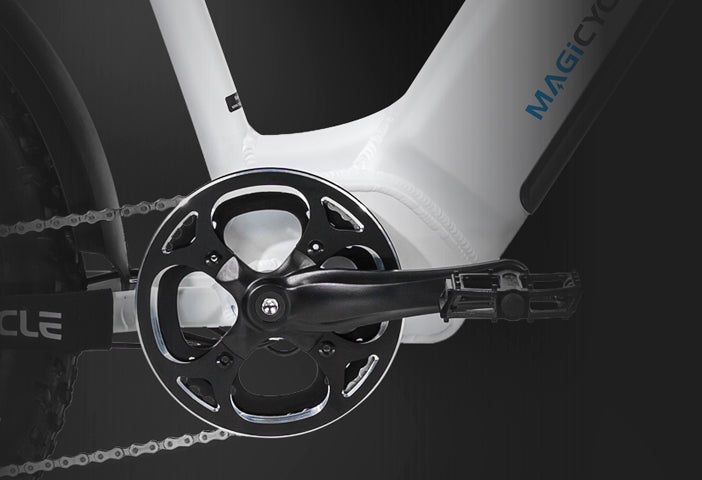

Crank 48T, 170mm forged alloy, dual-sided bashguard
Brake Tektro Mechanical Disc Brakes
Front Light 6V LED light
Saddle Super Soft Cushion
Seat Post Diameter 30.9mm length 300mm
Kickstand Heavy Duty Aluminum
Spokes 13 Gauge on the Front / 12 Gauge on the Back
Front Fork Alloy Mechanical lockout suspension fork
Throttle Half twist throttle
Freewheel Shimano-14-28T BROWN/BK
Bike Frame 20" 6061 Aluminum Frame
Package Dimension 153CM x 36CM x 88.5CM
Chain KMC chain
Stem MA-400 SSABK
Pedal Wellgo alloy pedal with reflectors
Gearing Shimano 7 Speed Gear Shift System

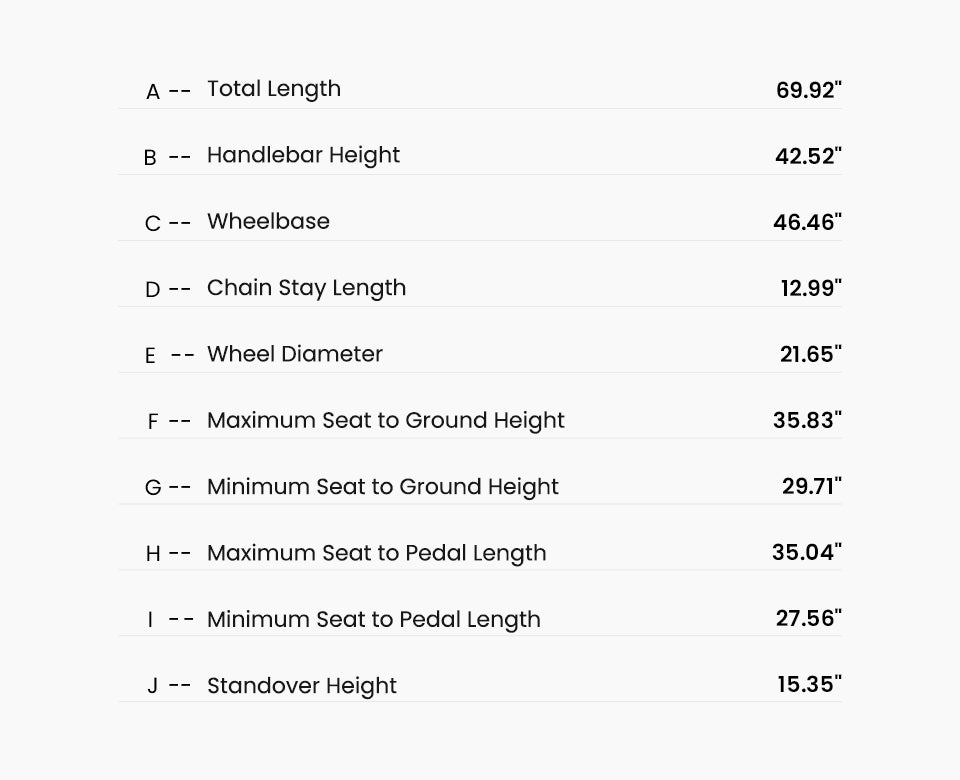

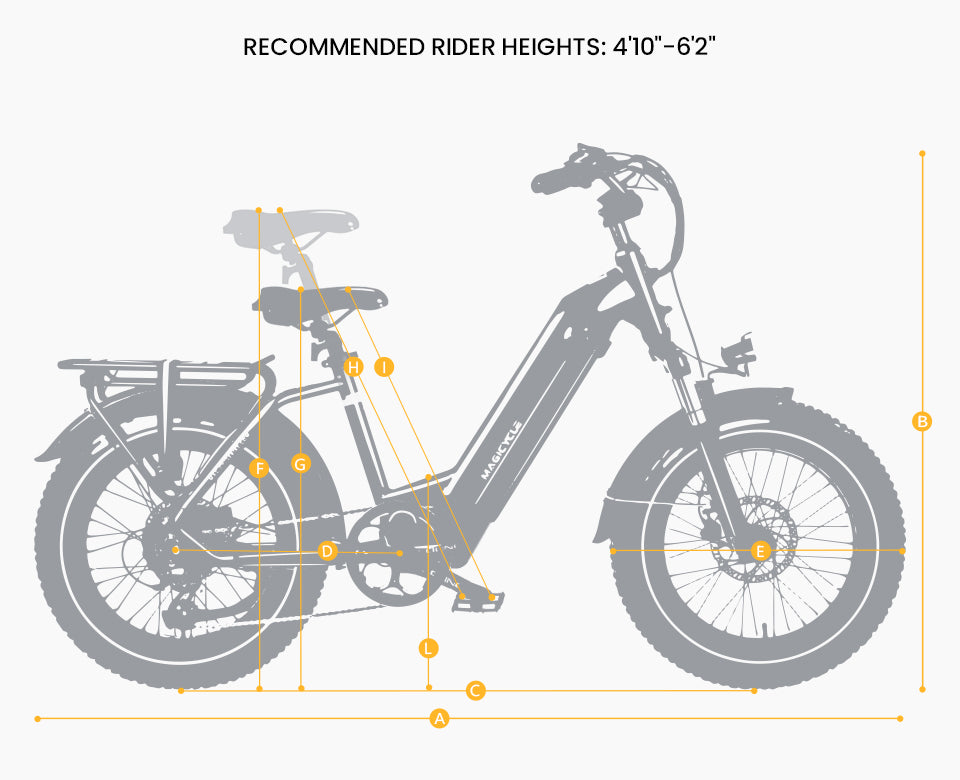

Geometry

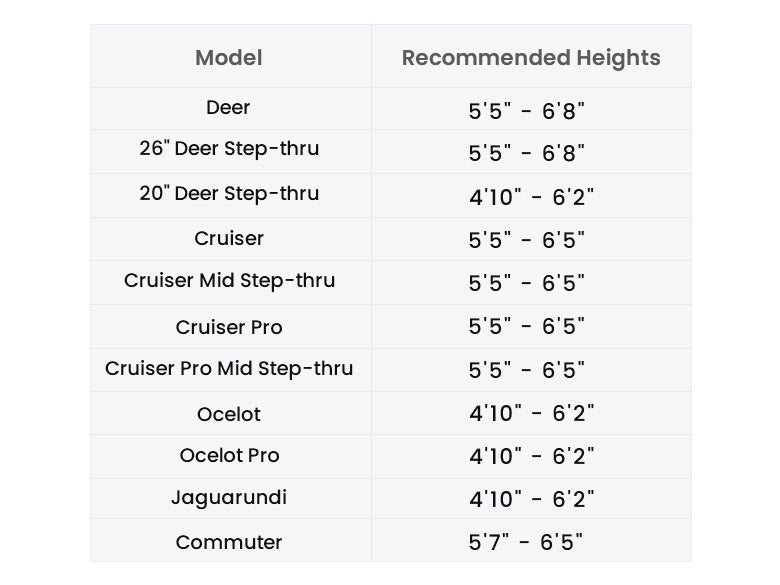

Sizing
OCELOT FAQS
OCELOT FAQS
-
+ Are step-thru ebikes worth it?
Step-thru ebikes are the best choice for professional needs, if you need a bike for the office then they prove to be the best choice. No matter what kind of formal attire you have, these bikes will keep you comfortable and relaxed. You also won't need to worry about your dress getting dirty. -
+ Are step-through bikes less stable?
No. Traditionally, the construction of a step-through bike is less stable and weaker than that of a traditional model. But Magicycle Ocelot step-through bikes are designed with thicker and more durable frames to avoid deformation when going uphill. The thickness of the tube wall is designed to be 4-5mm, while the ebike industry usually has a thickness of only 3mm, and it is a single cavity. This technology solves the problem of insufficient strength of the step-over model down tube in the bike industry. -
+ What's the Ebike Classification of Magicycle Ocelot?
The factory default setting of the Magicycle Ocelot is Class 2. -
+ What is the recommended tire pressure of Magicycle Ocelot?
Magicycle Ocelot should be between Min: 5 PSI ~ Max: 30 PSI. Usually, you can check the recommended pressure on the tire sidewall which is how much you should inflate your tires. -
+ Does Magicycle Ocelot has Gear Shifting?
Magicycle Ocelot is equipped with a high-quality 7-speed Shimano gear shift system. The gears are there to help you ride more efficiently on the flat, power up any hills in your area, and give you that flexibility if you run out of battery while out and about. -
+ What's in the Magicycle Ocelot gift package?
①Bike Repair Tool ($39 CAD Value): We carefully selected the following repair tools according to our ebike features: 3 wrenches, 6 Allen Wrenches, and 1 screwdriver.
②Magicycle Full Fenders ($145.99 CAD Value): Reducing the amount of water, mud, and grime that sprays up into your face, all over your bike and your backside is enough to warrant their use.

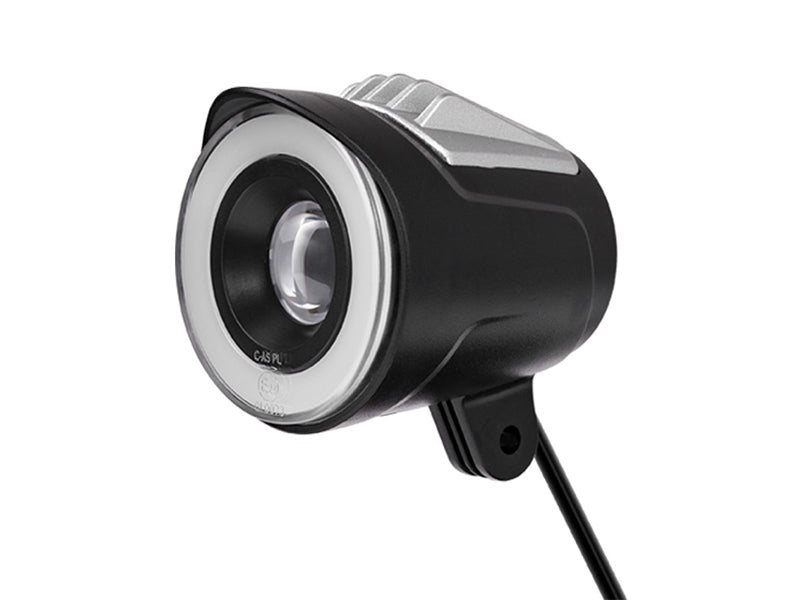

③Front Light ($53.99 Value): Integrated front light keeps you to be seen all the time.
